Study of the wear parts for your machines

We have been asked to make a study on a wear package for UG dump truck TH663i buggy.

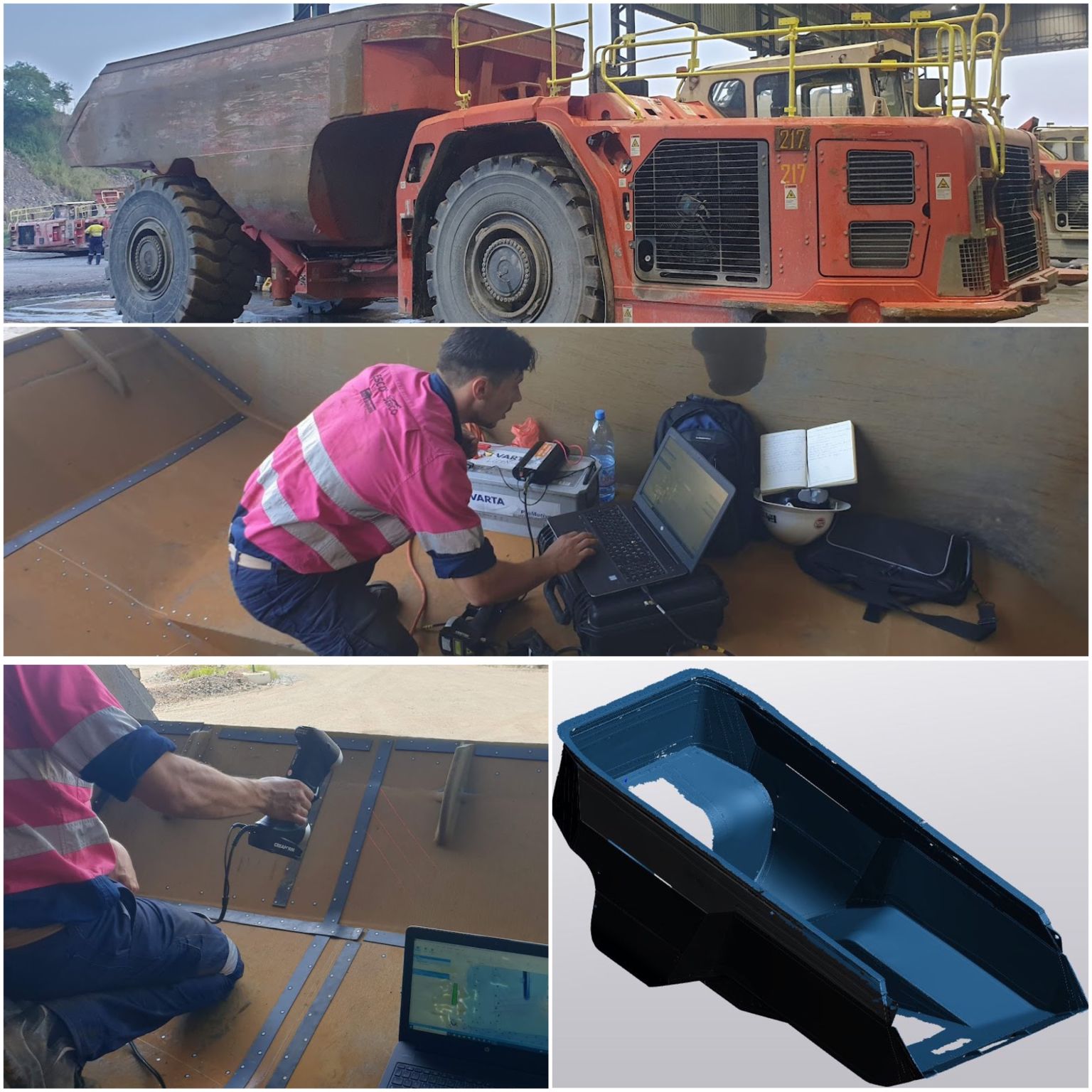

For this, our team went on site in order to take all internal dimensions using a portable 3D scan.

The dump truck had been completely washed and cleaned, stocked under the workshop shelter to allow good use on the lasers of the scanner.

Measures completed in 8 working hours.

Our retro engineer could make the 3D drawing for the next step : implement appropriate wear kit.

Well done Mining Team!
